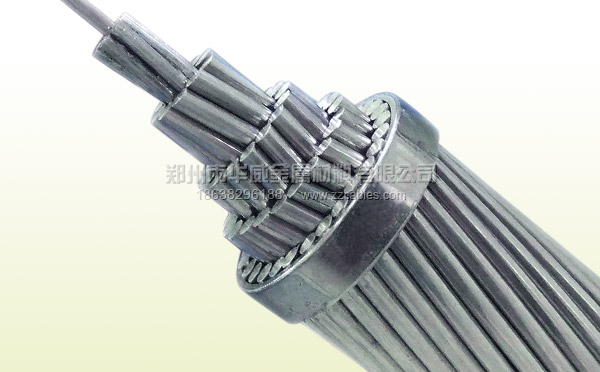

鋼芯鋁鎂硅稀土合金絞線
產品類別：鋁合金絞線
產品名稱：鋼芯鋁鎂硅稀土合金絞線
點擊次數：
摘要：
鋼芯鋁鎂硅稀土合金絞線：華威鋼芯鋁鎂硅稀土合金絞線在鋁鎂硅合金的基礎上經過技術研發，添加稀土元素，使鋼芯鋁鎂硅稀土合金絞線產品質量更加優越。
產品名稱：鋼芯鋁鎂硅稀土合金絞線
點擊次數：
摘要：
鋼芯鋁鎂硅稀土合金絞線：華威鋼芯鋁鎂硅稀土合金絞線在鋁鎂硅合金的基礎上經過技術研發，添加稀土元素，使鋼芯鋁鎂硅稀土合金絞線產品質量更加優越。
鋼芯鋁鎂硅稀土合金絞線的參數和性能：
鋼芯鋁鎂硅稀土合金絞線
一、標準
鋼芯鋁鎂硅稀土合金絞線按GB9329-88、GB/T1179-1999及美國標準ASTM-B399、ASTM-B711生產制造，鋼芯鋁鎂硅稀土合金絞線具有很好的抗拉強度，而其導電率只比鋁線降低10%左右，可用于一般大跨越輸電線路上。
二、名稱、型號及適用范圍
| 名稱 | 型號 | 適用范圍 | |
| GB9329-88 | GB/T1179-1999 | ||
| 鋼芯鋁鎂硅稀土合金絞線(AACSR) | LHAGJ、LHBGJ | JLHA2/G1A、 JLHA2/G1B、 JLHA2/G3A、 JLHA1/G1A、 JLHA1/G1B、 JLHA1/G3A |
適用于架空大跨越電力傳輸線路。適用于大跨度或重冰雪的架空傳輸線路。在沿海或有腐蝕氣候的工地可選用防腐型 |

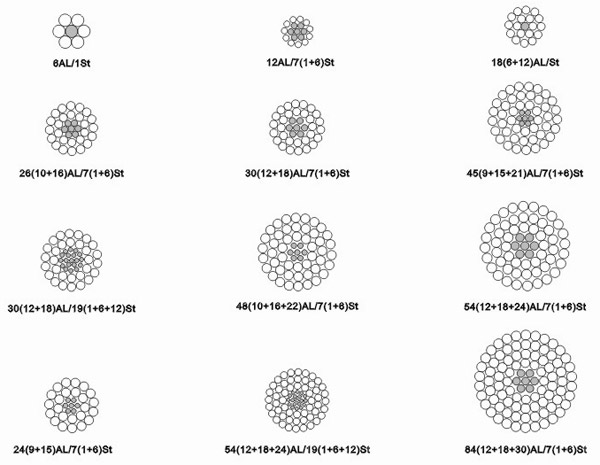

三、產品結構示意圖
鋼芯鋁鎂硅稀土合金絞線
四、主要性能參數
鋼芯鋁鎂硅稀土合金絞線LHAGJ、LHBGJ GB9329-88
| 標稱截面(mm2) | 結構根數/直徑(mm) | 重量(kg/km) | 計算拉斷力(kN) | 20℃時直流電阻不大于(Ω/km) | |||
| 鋁合金 | 鋼 | LHAGJ LHBGJ | LHAGJF1 LHBGJF1 | LHAGJF2 LHBGJF2 | |||
| 10/2 | 6/1.50 | 1/1.50 | 42.8 | 42.8 | 42.8 | 5.18 | 3.14026 |
| 16/3 | 6/1.85 | 1/1.85 | 65.1 | 65.1 | 65.1 | 7.89 | 2.06445 |
| 25/4 | 6/2.32 | 1/2.32 | 102.4 | 102.4 | 102.4 | 12.26 | 1.31272 |
| 35/6 | 6/2.72 | 1/2.72 | 140.7 | 140.7 | 140.7 | 16.86 | 0.95501 |
| 50/8 | 6/3.20 | 1/3.20 | 194.8 | 194.8 | 194.8 | 23.05 | 0.68999 |
| 50/30 | 12/2.32 | 7/2.32 | 371.1 | 378.7 | 382.6 | 48.58 | 0.66059 |
| 70/10 | 6/3.80 | 1/3.80 | 274.7 | 274.7 | 274.6 | 32.51 | 0.48930 |
| 70/40 | 12/2.72 | 7/2.72 | 510.1 | 520.6 | 525.9 | 66.78 | 0.48058 |
| 95/15 | 26/2.15 | 7/1.67 | 380.2 | 384.1 | 400.8 | 45.72 | 0.35508 |
| 95/55 | 12/3.20 | 7/3.20 | 706.0 | 720.6 | 728.0 | 90.46 | 0.34722 |
| 120/7 | 18/2.90 | 1/2.90 | 378.5 | 378.5 | 396.7 | 42.47 | 0.28114 |
| 120/20 | 26/2.38 | 7/1.85 | 466.1 | 471.0 | 491.4 | 56.05 | 0.28977 |
| 120/70 | 12/3.60 | 7/3.60 | 893.6 | 912.0 | 921.3 | 114.50 | 0.27435 |
| 150/8 | 18/3.20 | 1/3.20 | 460.9 | 460.9 | 483.0 | 51.43 | 0.23090 |
| 150/25 | 26/2.70 | 7/2.10 | 600.1 | 606.4 | 632.7 | 72.18 | 0.22515 |
| 185/10 | 18/3.60 | 1/3.60 | 583.3 | 583.3 | 611.3 | 65.09 | 0.18244 |
| 185/30 | 26/2.98 | 7/2.32 | 731.5 | 739.1 | 771.3 | 86.98 | 0.18483 |
| 210/10 | 18/3.80 | 1/3.80 | 649.9 | 649.9 | 681.1 | 72.52 | 0.16374 |
| 210/35 | 26/3.22 | 7/2.50 | 852.6 | 861.5 | 898.7 | 101.35 | 0.15830 |
| 240/30 | 24/3.60 | 7/2.40 | 921.0 | 929.2 | 971.3 | 107.85 | 0.13712 |
| 240/40 | 26/3.42 | 7/2.66 | 962.9 | 972.9 | 1015.2 | 114.48 | 0.14033 |
| 300/20 | 45/2.93 | 7/1.95 | 1001.0 | 1006.4 | 1071.3 | 113.70 | 0.11504 |
| 300/50 | 26/3.83 | 7/2.98 | 1207.9 | 1220.5 | 1273.5 | 143.62 | 0.11189 |
| 300/70 | 30/3.60 | 7/3.60 | 1400.0 | 1418.4 | 1474.7 | 168.36 | 0.10987 |
| 400/25 | 45/3.33 | 7/2.22 | 1293.7 | 1300.7 | 1384.9 | 146.97 | 0.08558 |
| 400/50 | 54/3.07 | 7/3.07 | 1509.6 | 1522.9 | 1611.6 | 174.67 | 0.08399 |
| 400/95 | 30/4.16 | 19/2.50 | 1857.4 | 1884.1 | 1959.6 | 226.01 | 0.08228 |
| 500/35 | 45/3.75 | 7/2.50 | 1640.6 | 1649.5 | 1756.2 | 185.22 | 0.06748 |
| 500/65 | 54/3.07 | 7/3.44 | 1895.4 | 1912.2 | 2023.5 | 219.31 | 0.06689 |
| 630/45 | 45/4.20 | 7/2.80 | 2058.0 | 2069.2 | 2203.0 | 232.34 | 0.05379 |
| 630/80 | 54/3.87 | 19/2.32 | 2385.2 | 2408.2 | 2548.8 | 278.14 | 0.05285 |
| 800/55 | 45/4.80 | 7/3.20 | 2668.1 | 2702.6 | 2877.5 | 301.50 | 0.04118 |
| 800/100 | 54/4.33 | 19/2.60 | 2988.5 | 3017.4 | 3149.1 | 348.57 | 0.04222 |
| 1000/45 | 72/4.21 | 7/2.80 | 3105.9 | 3117.1 | 3353.3 | 343.71 | 0.03348 |
| 1000/125 | 54/4.84 | 19/2.90 | 3729.8 | 3765.7 | 3985.2 | 434.91 | 0.03379 |
鋼芯鋁鎂硅稀土合金絞線JLHA2/G1A、JLHA2/G1B、JLHA2/G3A GB/T1179-1999
| 型號 | 鋼比(%) | 面積(mm2) | 單線根數 | 單線直徑(mm) | 直徑(mm) | 單位長度質量(kg/km) | 額定抗拉力(kN) | 20℃時直流電阻(Ω/km) | |||||||
| 鋁 Al | 鋼 St. | 總和 Total | 鋁 Al | 鋼 St. | 鋁 Al | 鋼 St. | 鋼芯 Core | 絞線 Conductor. | JLHA2/G1A | JLHA2/G1B | JLHA2/G3A | ||||
| 16 | 17 | 18.4 | 3.07 | 21.5 | 6 | 1 | 1.98 | 1.98 | 1.98 | 5.93 | 74.4 | 9.02 | 8.81 | 9.88 | 1.7934 |
| 25 | 17 | 28.8 | 4.80 | 33.6 | 6 | 1 | 2.47 | 2.47 | 2.47 | 7.41 | 116.2 | 13.96 | 13.62 | 15.25 | 1.1478 |
| 40 | 17 | 46.0 | 7.67 | 53.7 | 6 | 1 | 3.13 | 3.13 | 3.13 | 9.38 | 185.9 | 22.02 | 21.25 | 24.17 | 0.7174 |
| 63 | 17 | 72.5 | 12.10 | 84.6 | 6 | 1 | 3.92 | 3.92 | 3.02 | 11.8 | 292.8 | 34.68 | 33.48 | 37.58 | 0.4555 |
| 100 | 6 | 115 | 6.39 | 121 | 18 | 1 | 2.85 | 2.85 | 2.85 | 14.3 | 366.4 | 41.24 | 40.79 | 42.97 | 0.2880 |
| 125 | 6 | 144 | 7.99 | 152 | 18 | 1 | 3.19 | 3.19 | 3.19 | 16.0 | 458.0 | 51.23 | 50.43 | 43.47 | 0.2304 |
| 125 | 16 | 144 | 23.4 | 167 | 26 | 7 | 2.65 | 2.06 | 6.19 | 16.8 | 579.9 | 69.86 | 68.22 | 76.42 | 0.2310 |
| 160 | 6 | 184 | 10.2 | 194 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.0 | 586.2 | 65.58 | 64.56 | 68.03 | 0.1800 |
| 160 | 16 | 184 | 30 | 214 | 26 | 7 | 3.00 | 2.34 | 7.01 | 19.0 | 742.3 | 88.52 | 86.42 | 96.61 | 0.1805 |
| 200 | 6 | 230 | 12.8 | 243 | 18 | 1 | 4.04 | 4.04 | 4.04 | 20.2 | 732.8 | 81.97 | 80.69 | 85.04 | 0.144 |
| 200 | 16 | 230 | 37.5 | 268 | 26 | 7 | 3.36 | 2.61 | 7.83 | 21.3 | 927.9 | 110.64 | 108.02 | 120.77 | 0.01444 |
| 250 | 10 | 288 | 28.3 | 316 | 22 | 7 | 4.08 | 2.27 | 6.80 | 23.1 | 1013.5 | 117.09 | 115.12 | 127.72 | 0.1154 |
| 250 | 16 | 288 | 46.9 | 335 | 26 | 7 | 3.75 | 2.92 | 8.76 | 23.8 | 1159.8 | 138.31 | 135.03 | 150.96 | 0.1555 |
| 315 | 7 | 363 | 25.1 | 388 | 45 | 7 | 3.20 | 2.14 | 6.41 | 25.6 | 1196.5 | 136.28 | 134.52 | 143.30 | 0.0917 |
| 315 | 16 | 363 | 59.0 | 422 | 26 | 7 | 4.21 | 3.28 | 9.83 | 26.7 | 1461.4 | 171.90 | 166.00 | 188.44 | 0.0917 |
| 400 | 7 | 460 | 31.8 | 492 | 45 | 7 | 3.61 | 2.41 | 7.22 | 28.9 | 1519.4 | 172.10 | 169.87 | 180.69 | 0.0722 |
| 400 | 13 | 460 | 59.7 | 520 | 54 | 7 | 3.29 | 3.29 | 9.88 | 29.7 | 1738.3 | 201.46 | 195.49 | 218.17 | 0.0723 |
| 450 | 7 | 518 | 35.8 | 554 | 45 | 7 | 3.83 | 2.55 | 7.66. | 30.6 | 1709.3 | 193.61 | 191.10 | 203.28 | 0.0642 |
| 450 | 13 | 518 | 67.1 | 585 | 54 | 7 | 3.49 | 3.49 | 10.50 | 31.5 | 1955.6 | 226.64 | 219.93 | 245.44 | 0.0643 |
| 500 | 7 | 575 | 39.8 | 615 | 45 | 7 | 4.04 | 2.69 | 8.07 | 32.3 | 1899.3 | 215.12 | 212.33 | 255.86 | 0.0758 |
| 500 | 13 | 575 | 74.6 | 650 | 54 | 7 | 3.68 | 3.68 | 11.1 | 33.2 | 2172.9 | 251.82 | 244.86 | 269.73 | 0.0758 |
| 560 | 7 | 645 | 44.6 | 689 | 45 | 7 | 4.27 | 2.85 | 8.54 | 34.2 | 2127.2 | 240.93 | 237.82 | 252.97 | 0.0516 |
| 560 | 13 | 645 | 81.6 | 726 | 54 | 19 | 3.90 | 2.34 | 11.7 | 35.1 | 2420.9 | 283.21 | 277.49 | 305.25 | 0.0516 |
| 630 | 4 | 725 | 31.3 | 756 | 72 | 7 | 3.58 | 2.39 | 7.16 | 35.8 | 2248.0 | 249.62 | 247.43 | 258.08 | 0.0459 |
| 630 | 13 | 725 | 91.8 | 817 | 54 | 19 | 4.13 | 2.48 | 12.4 | 37.2 | 2723.5 | 318.61 | 312.18 | 343.40 | 0.0459 |
| 710 | 4 | 817 | 35.3 | 852 | 72 | 7 | 3.80 | 2.53 | 7.60 | 38.0 | 2533.4 | 281.32 | 278.85 | 290.85 | 0.0407 |
| 710 | 13 | 817 | 104 | 921 | 54 | 19 | 4.39 | 2.63 | 13.20 | 39.5 | 3069.4 | 359.06 | 351.82 | 387.01 | 0.0407 |
| 800 | 4 | 921 | 39.8 | 961 | 72 | 7 | 4.04 | 2.69 | 8.07 | 40.4 | 2854.6 | 316.98 | 314.19 | 327.72 | 0.0361 |
| 800 | 8 | 921 | 76.7 | 997 | 84 | 7 | 3.74 | 3.74 | 11.20 | 41.1 | 3145.1 | 356.03 | 348.35 | 374.44 | 0.0362 |
| 900 | 4 | 1036 | 44.8 | 1081 | 72 | 7 | 4.28 | 2.85 | 8.60 | 42.8 | 3211.4 | 356.60 | 353.47 | 368.69 | 0.0321 |
| 900 | 8 | 1036 | 86.3 | 1122 | 84 | 7 | 3.96 | 3.96 | 11.9 | 43.6 | 3538.3 | 400.53 | 391.90 | 421.25 | 0.0322 |
| 1000 | 8 | 1151 | 93.7 | 1245 | 84 | 19 | 4.18 | 2.51 | 12.5 | 45.9 | 3916.8 | 446.37 | 439.81 | 471.67 | 0.0289 |
| 1120 | 8 | 1289 | 105.0 | 1394 | 84 | 19 | 4.42 | 2.65 | 13.3 | 48.6 | 4386.8 | 499.93 | 492.59 | 528.27 | 0.0258 |
鋼芯鋁鎂硅稀土合金絞線JLHA1/G1A、JLHA1/G1B、JLHA1/G3A GB/T1179-1999
| 型號 | 鋼比(%) | 面積(mm2) | 單線根數 | 單線直徑(mm) | 直徑(mm) | 單位長度質量(kg/km) | 額定抗拉力(kN) | 20℃時直流電阻(Ω/km) | |||||||
| 鋁 | 鋼 | 總和 | 鋁 | 鋼 | 鋁 | 鋼 | 鋼芯 | 絞線 | JLHA2/G1A | JLHA2/G1B | JLHA2/G3A | ||||
| 16 | 17 | 18.6 | 3.10 | 21.7 | 6 | 1 | 1.99 | 1.99 | 5.96 | 5.96 | 75.1 | 9.67 | 9.45 | 10.53 | 1.7934 |
| 25 | 17 | 29.0 | 4.84 | 33.9 | 6 | 1 | 2.48 | 2.48 | 7.45 | 7.45 | 117.3 | 14.69 | 14.62 | 16.27 | 1.1478 |
| 40 | 17 | 46.5 | 7.75 | 54.2 | 6 | 1 | 3.14 | 3.14 | 9.42 | 9.42 | 187.7 | 23.63 | 22.85 | 25.79 | 0.7174 |
| 63 | 17 | 73.2 | 12.20 | 85.4 | 6 | 1 | 3.94 | 3.94 | 11.8 | 11.8 | 295.6 | 36.48 | 35.26 | 39.41 | 0.4555 |
| 100 | 6 | 116.0 | 6.64 | 123.0 | 18 | 1 | 2.87 | 2.87 | 14.3 | 14.3 | 369.9 | 45.12 | 44.67 | 48.86 | 0.2880 |
| 125 | 6 | 145 | 8.07 | 153 | 18 | 1 | 3.21 | 3.21 | 16.0 | 16.0 | 462.3 | 56.08 | 55.27 | 58.34 | 0.2304 |
| 125 | 16 | 145 | 23.7 | 169 | 26 | 7 | 2.67 | 2.67 | 16.9 | 16.9 | 585.4 | 74.88 | 73.22 | 81.50 | 0.2310 |
| 160 | 6 | 186 | 10.3 | 196 | 18 | 1 | 3.63 | 3.63 | 18.1 | 18.1 | 591.8 | 69.92 | 68.89 | 72.40 | 0.1800 |
| 160 | 16 | 186 | 30.3 | 216 | 26 | 7 | 3.02 | 2.35 | 19.1 | 19.1 | 749.4 | 94.94 | 92.82 | 103.11 | 0.1805 |
| 200 | 6 | 232 | 12.9 | 245 | 18 | 1 | 4.05 | 4.05 | 20.3 | 20.3 | 739.8 | 87.40 | 88.11 | 90.50 | 0.1444 |
| 200 | 16 | 232 | 37.8 | 270 | 26 | 7 | 3.37 | 2.62 | 21.4 | 21.4 | 936.7 | 118.67 | 116.02 | 128.89 | 0.1444 |
| 250 | 10 | 290 | 28.5 | 319 | 22 | 7 | 4.10 | 2.28 | 23.2 | 23.2 | 1023.2 | 124.02 | 122.02 | 131.72 | 0.1154 |
| 250 | 16 | 290 | 47.3 | 338 | 26 | 7 | 3.77 | 2.93 | 23.9 | 23.9 | 1170.9 | 145.43 | 142.12 | 158.21 | 0.1155 |
| 315 | 7 | 366 | 25.3 | 391 | 45 | 7 | 3.22 | 2.15 | 25.7 | 25.7 | 1207.9 | 148.56 | 146.78 | 155.64 | 0.0917 |
| 315 | 16 | 366 | 59.6 | 426 | 26 | 7 | 4.23 | 3.29 | 26.8 | 26.8 | 1475.3 | 180.86 | 174.9 | 197.55 | 0.0917 |
| 400 | 7 | 465 | 32.1 | 197 | 45 | 7 | 3.63 | 2.42 | 29.0 | 29.0 | 1533.9 | 183.03 | 180.78 | 191.71 | 0.0722 |
| 400 | 13 | 465 | 60.2 | 525 | 54 | 7 | 3.31 | 3.31 | 29.8 | 29.8 | 1745.9 | 217.32 | 211.29 | 234.19 | 0.0723 |
| 450 | 7 | 523 | 36.1 | 559 | 45 | 7 | 3.85 | 2.56 | 30.8 | 30.8 | 1725.6 | 205.91 | 203.33 | 215.67 | 0.0642 |
| 450 | 13 | 523 | 67.8 | 591 | 54 | 7 | 3.51 | 3.51 | 31.6 | 31.6 | 1974.2 | 239.26 | 232.48 | 255.52 | 0.0643 |
| 500 | 7 | 581 | 40.2 | 621 | 45 | 7 | 4.05 | 2.7 | 32.4 | 32.4 | 1917.3 | 228.79 | 225.98 | 239.63 | 0.0578 |
| 500 | 13 | 581 | 75.3 | 656 | 54 | 7 | 3.7 | 3.7 | 33.3 | 33.3 | 2193.6 | 265.84 | 258.31 | 283.91 | 0.0578 |
| 560 | 7 | 651 | 45.0 | 696 | 45 | 7 | 4.29 | 2.86 | 34.3 | 34.3 | 2147.4 | 256.24 | 253.09 | 268.39 | 0.0516 |
| 560 | 13 | 651 | 82.4 | 733 | 54 | 19 | 3.92 | 2.35 | 35.3 | 35.3 | 2444.0 | 298.92 | 293.15 | 321.17 | 0.0516 |
| 630 | 4 | 732 | 31.6 | 764 | 72 | 7 | 3.6 | 2.4 | 36.0 | 36.0 | 2269.4 | 266.64 | 264.42 | 275.18 | 0.0459 |
| 630 | 13 | 732 | 92.7 | 825 | 54 | 19 | 4.15 | 2.49 | 37.4 | 37.4 | 2749.5 | 336.64 | 329.79 | 361.32 | 0.0459 |
| 710 | 4 | 825 | 35.6 | 861 | 72 | 7 | 3.82 | 2.55 | 38.2 | 38.2 | 2557.6 | 300.5 | 298.00 | 310.12 | 0.0407 |
| 710 | 13 | 825 | 104.0 | 929 | 54 | 19 | 4.41 | 2.65 | 39.7 | 39.7 | 3089.6 | 378.98 | 371.67 | 407.20 | 0.0407 |
| 800 | 4 | 930 | 40.2 | 970 | 72 | 7 | 4.05 | 2.70 | 40.5 | 40.5 | 2881.8 | 338.59 | 355.78 | 349.43 | 0.0361 |
| 800 | 8 | 930 | 77.5 | 1007 | 84 | 7 | 3.75 | 3.75 | 41.3 | 41.3 | 3175.1 | 378.01 | 370.26 | 396.60 | 0.0362 |
| 900 | 4 | 1046 | 45.2 | 1091 | 72 | 7 | 4.30 | 2.87 | 43.0 | 43.0 | 3242.0 | 380.91 | 377.75 | 361.32 | 0.0321 |
| 900 | 8 | 1046 | 87.1 | 1133 | 84 | 7 | 3.98 | 3.98 | 43.8 | 43.8 | 3572.0 | 425.26 | 416.54 | 446.17 | 0.0322 |
| 1000 | 8 | 1162 | 94.6 | 1257 | 84 | 19 | 4.2 | 2.52 | 46.2 | 46.2 | 3954.1 | 473.86 | 467.24 | 499.40 | 0.0289 |
| 1120 | 8 | 1301 | 106.0 | 1407 | 84 | 19 | 4.44 | 2.66 | 48.9 | 48.9 | 4429.0 | 530.72 | 523.30 | 559.33 | 0.0258 |
鋼芯鋁鎂硅稀土合金絞線(AACSR) ASTM-B711
| 總截面(mm2) | 合金截面(mm2) | 鋼絲截面(mm2) | 合金根數 | 合金單絲直徑(mm) | 鋼絲根數 | 鋼絲直徑(mm) | 導線直徑(mm) | 單位長度質量(kg/km) | 額定抗拉強度(daN) | 20℃時直流電阻(Ω/km) |
| 163 | 140 | 23 | 26 | 2.62 | 7 | 2.04 | 16.6 | 560 | 7500 | 0.240 |
| 173 | 140 | 33 | 30 | 2.44 | 7 | 2.44 | 17.1 | 650 | 8740 | 0.240 |
| 186 | 160 | 26 | 26 | 2.80 | 7 | 2.18 | 17.7 | 645 | 8560 | 0.210 |
| 198 | 160 | 38 | 30 | 2.61 | 7 | 2.61 | 18.3 | 740 | 10600 | 0.210 |
| 209 | 180 | 29 | 26 | 2.97 | 7 | 2.31 | 18.8 | 725 | 9510 | 0.187 |
| 222 | 180 | 42 | 30 | 2.76 | 7 | 2.76 | 19.3 | 825 | 11200 | 0.187 |
| 232 | 200 | 32 | 26 | 3.13 | 7 | 2.43 | 19.8 | 800 | 10600 | 0.168 |
| 247 | 200 | 47 | 30 | 2.91 | 7 | 2.91 | 20.4 | 920 | 12400 | 0.168 |
| 260 | 224 | 36 | 26 | 3.31 | 7 | 2.57 | 21.0 | 900 | 11800 | 0.150 |
| 276 | 224 | 52 | 30 | 3.08 | 7 | 3.08 | 21.6 | 1025 | 13900 | 0.150 |
| 291 | 250 | 41 | 26 | 3.50 | 7 | 2.72 | 22.2 | 1010 | 12900 | 0.135 |
| 308 | 250 | 58 | 30 | 3.26 | 7 | 3.26 | 22.8 | 1145 | 15600 | 0.135 |
| 326 | 280 | 46 | 26 | 3.70 | 7 | 2.88 | 23.4 | 1140 | 1400 | 0.120 |
| 345 | 280 | 65 | 30 | 3.45 | 7 | 3.45 | 24.2 | 1280 | 17100 | 0.120 |
| 367 | 315 | 52 | 26 | 3.93 | 7 | 3.06 | 24.9 | 1276 | 16300 | 0.107 |
| 387 | 315 | 72 | 30 | 3.66 | 19 | 2.20 | 25.6 | 1433 | 19000 | 0.107 |
| 413 | 355 | 58 | 26 | 4.17 | 7 | 3.24 | 26.4 | 1433 | 18300 | 0.0950 |
| 436 | 355 | 81 | 30 | 3.88 | 19 | 2.33 | 27.2 | 1614 | 21000 | 0.0950 |
| 465 | 400 | 65 | 26 | 4.43 | 7 | 3.45 | 28.1 | 1612 | 20700 | 0.0842 |
| 491 | 400 | 91 | 30 | 4.12 | 19 | 2.47 | 28.8 | 1816 | 23700 | 0.0842 |
| 509 | 450 | 59 | 54 | 3.26 | 1 | 1.98 | 29.5 | 1703 | 21500 | 0.0748 |
| 563 | 500 | 63 | 54 | 3.43 | 19 | 2.06 | 30.9 | 1873 | 22900 | 0.0673 |
| 631 | 560 | 71 | 54 | 3.63 | 19 | 2.18 | 32.7 | 2101 | 25700 | 0.06010 |
| 710 | 630 | 80 | 54 | 3.85 | 19 | 2.31 | 34.6 | 2365 | 28600 | 0.0534 |
| 800 | 710 | 90 | 54 | 4.09 | 19 | 2.45 | 36.8 | 2665 | 32200 | 0.0474 |
| 901 | 800 | 101 | 54 | 4.43 | 19 | 2.60 | 39.0 | 3000 | 36300 | 0.0420 |
| 973 | 900 | 73 | 84 | 3.69 | 19 | 2.21 | 40.6 | 3062 | 35500 | 0.0374 |
| 1081 | 1000 | 81 | 84 | 3.89 | 19 | 2.33 | 42.8 | 3395 | 39100 | 0.0337 |
| 1211 | 1120 | 91 | 84 | 4.12 | 19 | 2.47 | 45.3 | 3803 | 43900 | 0.0300 |
| 1352 | 1250 | 102 | 84 | 4.35 | 19 | 2.61 | 47.8 | 4250 | 49000 | 0.0270 |
